Wondering about the correct orientation for your furnace air filter? It’s critical that you install it so the arrow indicating airflow on the filter is directed toward your furnace or ductwork. Proper placement boosts performance and cuts down on energy bills, while incorrect installation may cause diminished airflow and increase costs. This guide will delve into why aligning the arrow correctly matters and how to ensure the proper installation of your filter.

Key Takeaways

  • The airflow arrow on a furnace filter must point toward the furnace or ductwork to ensure effective air purification.
  • Regularly monitoring and replacing furnace filters is essential to maintain HVAC efficiency and indoor air quality.
  • Follow furnace filter tips to ensure correct installation practices, as improper placement can lead to decreased effectiveness and unnecessary costs.

Understanding Furnace Filters and Indoor Air Quality

Furnace filters are pivotal in ensuring good indoor air quality and the efficient operation of your heating and cooling system. These filters are designed to capture dust, allergens, and other airborne particles that can compromise the air you breathe. By effectively removing these contaminants, furnace filters not only enhance indoor air quality but also help reduce allergy symptoms and protect your HVAC system from potential damage.

There are several types of furnace filters available, each offering unique benefits:

  • Disposable Fiberglass or Pleated Filters: These are the most common types of furnace filters. They are designed to be replaced every 1-3 months, making them a convenient option for regular maintenance.
  • Washable or Reusable Filters: These filters can be cleaned and reused multiple times, providing a cost-effective solution for long-term use.
  • Electrostatic Filters: Utilizing an electrostatic charge to attract and capture particles, these filters are particularly beneficial for homes with pets or individuals with allergies.
  • HEPA Filters: Known for their high efficiency, HEPA filters can capture 99.97% of particles as small as 0.3 microns, making them ideal for homes with severe allergy sufferers.

Regardless of the type of furnace filter you choose, proper installation is crucial to ensure the correct airflow direction and optimal performance. Always follow the manufacturer’s instructions to maintain the efficiency of your heating and cooling system and to uphold superior indoor air quality.

Understanding Airflow Direction in Air Filters

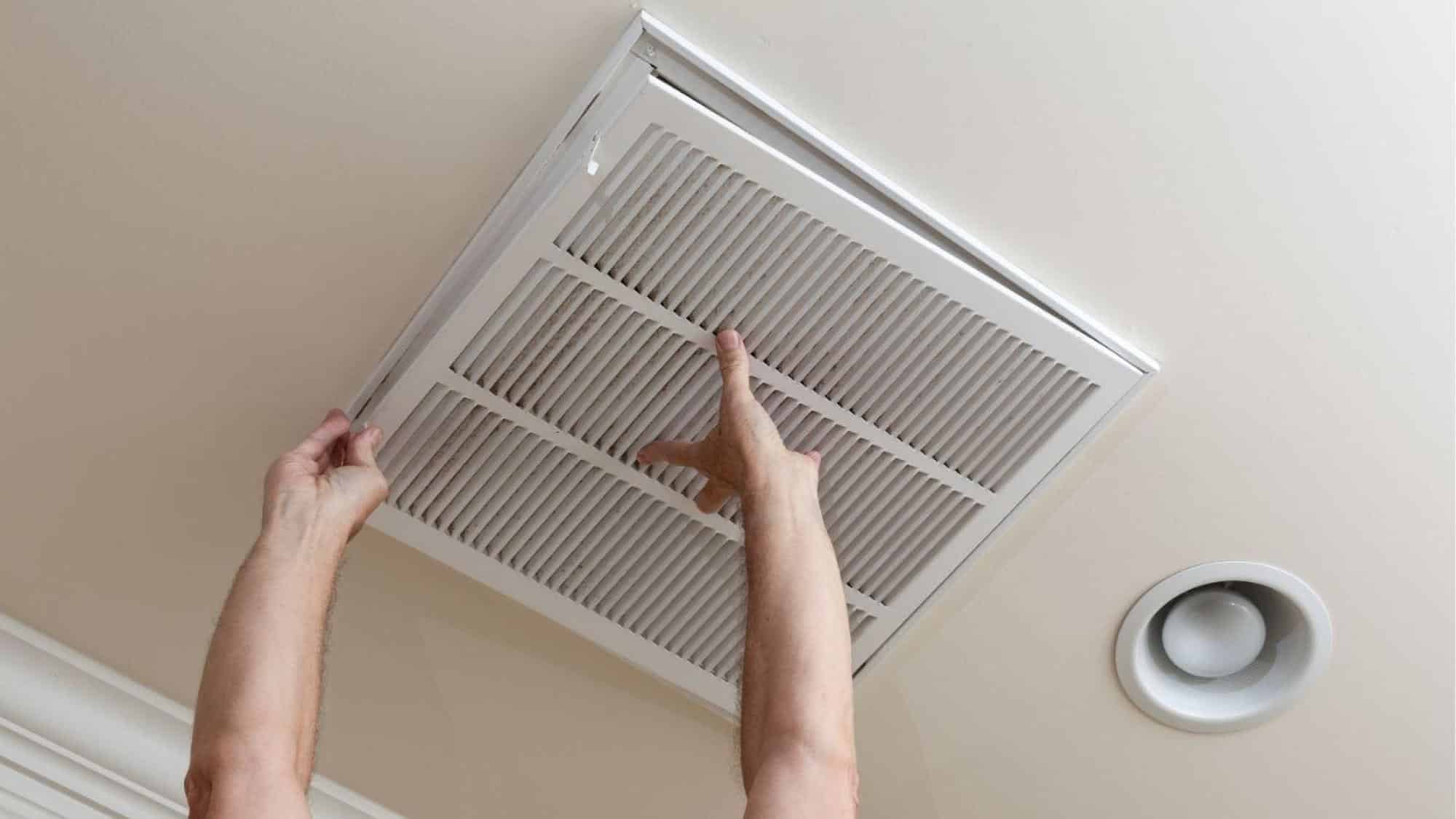

Understanding airflow direction in air filters

Knowing the correct airflow direction within your HVAC system is essential for proper furnace filter placement. The role of the filter is to purify the air before it enters either your furnace or air handler, and accomplishing this task effectively requires that it be situated in line with the designated airflow direction.

Most disposable filters feature arrows along their edges to indicate the airflow path. These arrows should be directed toward your furnace or the connected ductwork, aligning with the airflow in your system. If the filter is installed incorrectly, facing the wrong direction, you may experience reduced airflow and decreased filtering efficiency.

Installing the filter in the wrong direction, where air enters from the exit side, can lead to blockages and diminish its ability to capture dust and debris. This can result in higher operating costs and compromised performance. To prevent these issues, ensure that the directional indicators on each filter align with the airflow pattern specific to your system configuration.

Identifying the Airflow Arrow

Determining the direction of airflow on furnace filters is both simple and crucial. Typically, an arrow on the frame of the filter denotes this orientation, pointing out the proper airflow direction, which should be towards the furnace and away from the return duct to ensure effective heating or cooling.

With certain types like electrostatic filters where precise placement is necessary for optimal performance, manufacturers often include distinct markers or guidelines. It’s imperative to verify that these filters are installed facing the right way. Doing so ensures your HVAC system operates efficiently and lasts longer.

Correct Filter Orientation for Different Types of Filters

Correct filter orientation for different types of filters

Each type of furnace filter, including the HVAC furnace filter, requires a specific setup to function effectively. This applies to fiberglass, pleated, washable, electrostatic, and HEPA filters, each with its own orientation needs. Understanding these differences is essential for the correct installation of each filter type, which will help maintain the efficiency of your HVAC system. Comprehensive instructions are provided to ensure that every filter type is installed accurately.

Disposable Fiberglass or Pleated Filters

Disposable fiberglass or pleated filters are among the most common types of furnace filters. They should always be installed with the arrow pointing toward the furnace or air handler and away from the return duct. This orientation ensures that the filter can effectively trap dust and debris before the air reaches the furnace. Install the new filter in the same direction as the old filter when replacing it. Regularly check your filter air box and use an electronic air filter monitor, if possible, to keep track of when it’s time to replace the filters.

Washable or Reusable Filters

Reusable filters, crafted for extended usage, can undergo cleaning and multiple reinsertions. While the installation of these filters may be bidirectional, mirroring the orientation of the previous filter guarantees optimal airflow and performance. Ensuring that these filters are correctly oriented upon reinstallation is vital. Consistent cleansing is imperative to preserve their proper function and uphold superior air quality indoors.

Electrostatic Filters

It is crucial to heed the manufacturer’s guidelines concerning the orientation of electrostatic filters, as they typically include precise instructions along with an indicator for airflow direction. This adherence is vital for ensuring that the filter operates properly and achieves peak air filtration performance. Before installation, always verify the directions provided by the manufacturer.

HEPA Filters

HEPA filters excel in capturing airborne contaminants and enhancing the quality of air indoors. Ensuring these filters are correctly positioned is crucial, as their performance can be greatly diminished if they’re installed incorrectly.

In instances where there aren’t any directional arrows present, air typically flows into the filter from the side that has a metal or wire mesh covering. To ascertain the proper direction of airflow for your particular HEPA filter model, it’s important to consult the guidance provided by its manufacturer.

Furnace Filter Tips for Different Furnace Types

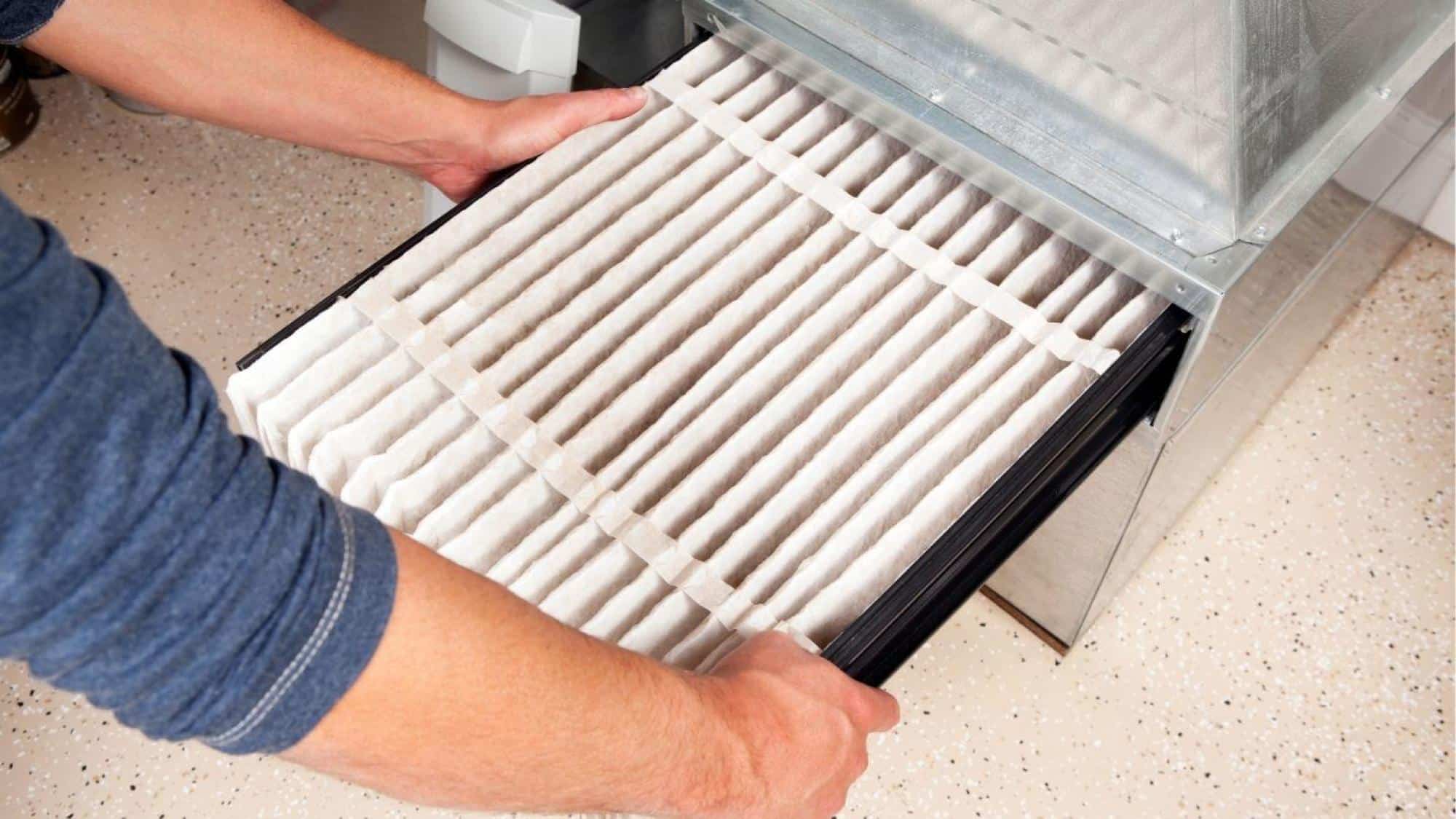

Furnace filter tips for different furnace types

It’s essential to recognize the kind of furnace you own—whether it’s an up flow, downflow, or horizontal model—as this dictates how a furnace filter should be properly situated within the system. The distinct airflow characteristics inherent in each type of furnace directly influence both the position and manner in which your filter needs to be installed.

Up flow Furnaces

In furnaces where air flows upward, it is crucial to install the air filter so that its arrow points upwards in the direction of the blower compartment. You will usually find this filter located in the unit’s lower section, close to where cold air returns.

Ensuring the correct positioning of the filter helps sustain operational efficiency while avoiding a rise in energy usage and a decrease in airflow through the system.

Downflow Furnaces

In downflow furnaces, it is essential to position the filter at the unit’s upper portion, ensuring that the arrow indicating airflow direction points downward. This arrangement aligns with how these furnaces operate by pulling in air from above and directing it downwards. For certain setups to achieve optimal performance, installing a pair of filters may be necessary, both set at an identical angle.

Horizontal Furnaces

For furnaces set up horizontally, it’s essential to ensure that the air filter’s arrow is in line with the direction of horizontal airflow. It is common practice to place the filter on the intake side, which requires aligning its airflow arrow so that it coincides with how air flows within the ductwork.

Aligning the furnace correctly optimizes system efficiency and averts problems related to performance.

Maintaining Your Furnace Filter for Optimal Performance

It is essential to keep your furnace filter in good condition to ensure the efficiency of your heating and cooling system. The Minimum Efficiency Reporting Value (MERV) scale is a key metric for evaluating the efficiency of air furnace filters and selecting filters with appropriate MERV ratings is crucial for optimal performance in residential settings. By routinely replacing air filters, you prevent the accumulation of dirt and debris that can impair the performance of your system.

In homes with pets or where there are high levels of pollution, it may be necessary to change out filters more often in order to sustain optimal indoor air quality. Ensuring correct installation and regular checks will help guarantee that the furnace functions effectively and maintains excellent air quality.

Conclusion

Ensuring the efficiency of your HVAC system and maintaining clean indoor air quality is vital for a comfortable home environment. The proper installation and regular maintenance of your furnace filter are essential components in achieving this goal.
